Easy-Load Livestock Trailer
Drop bed transporters for all farm animals

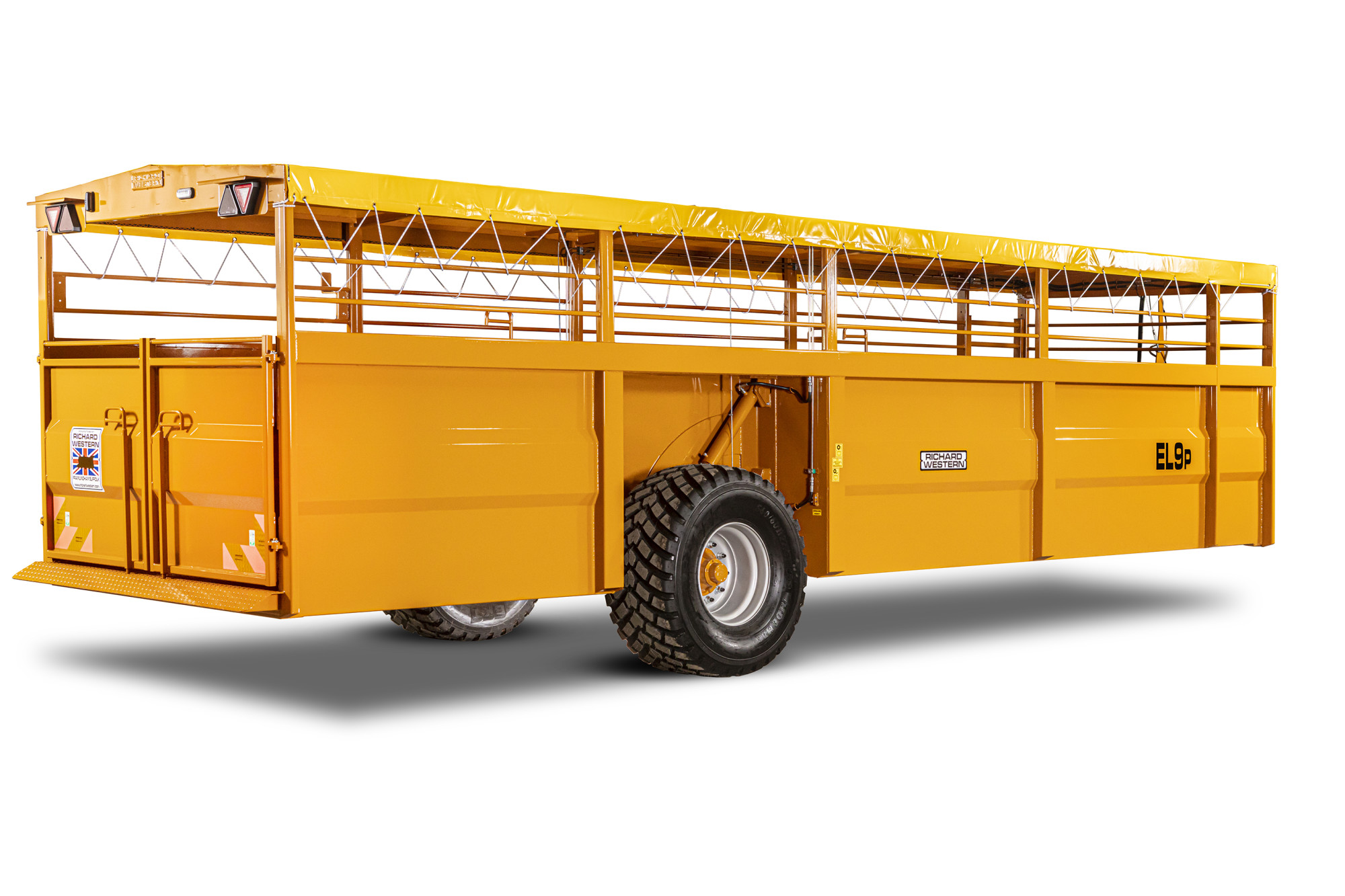

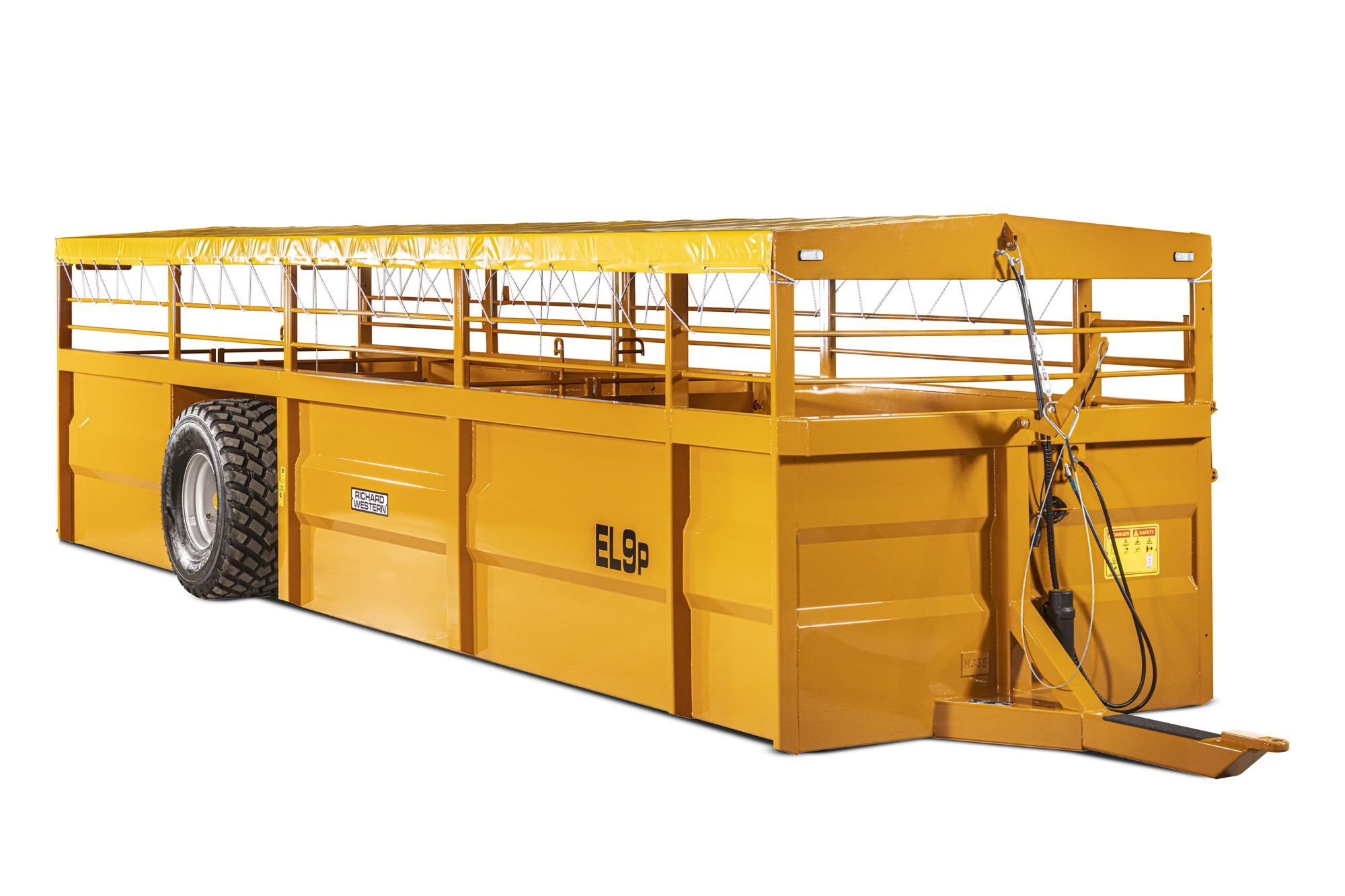

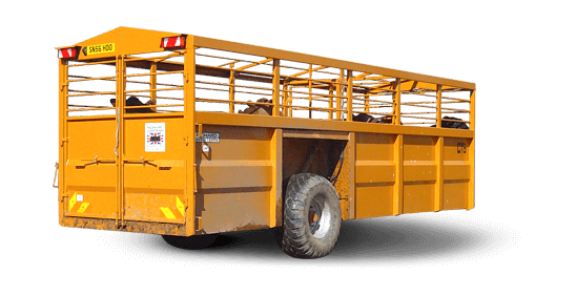

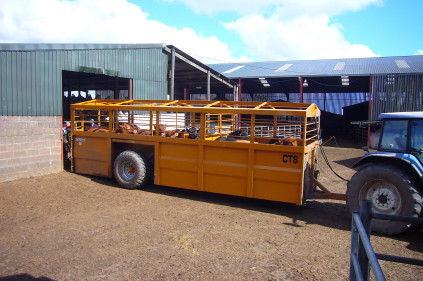

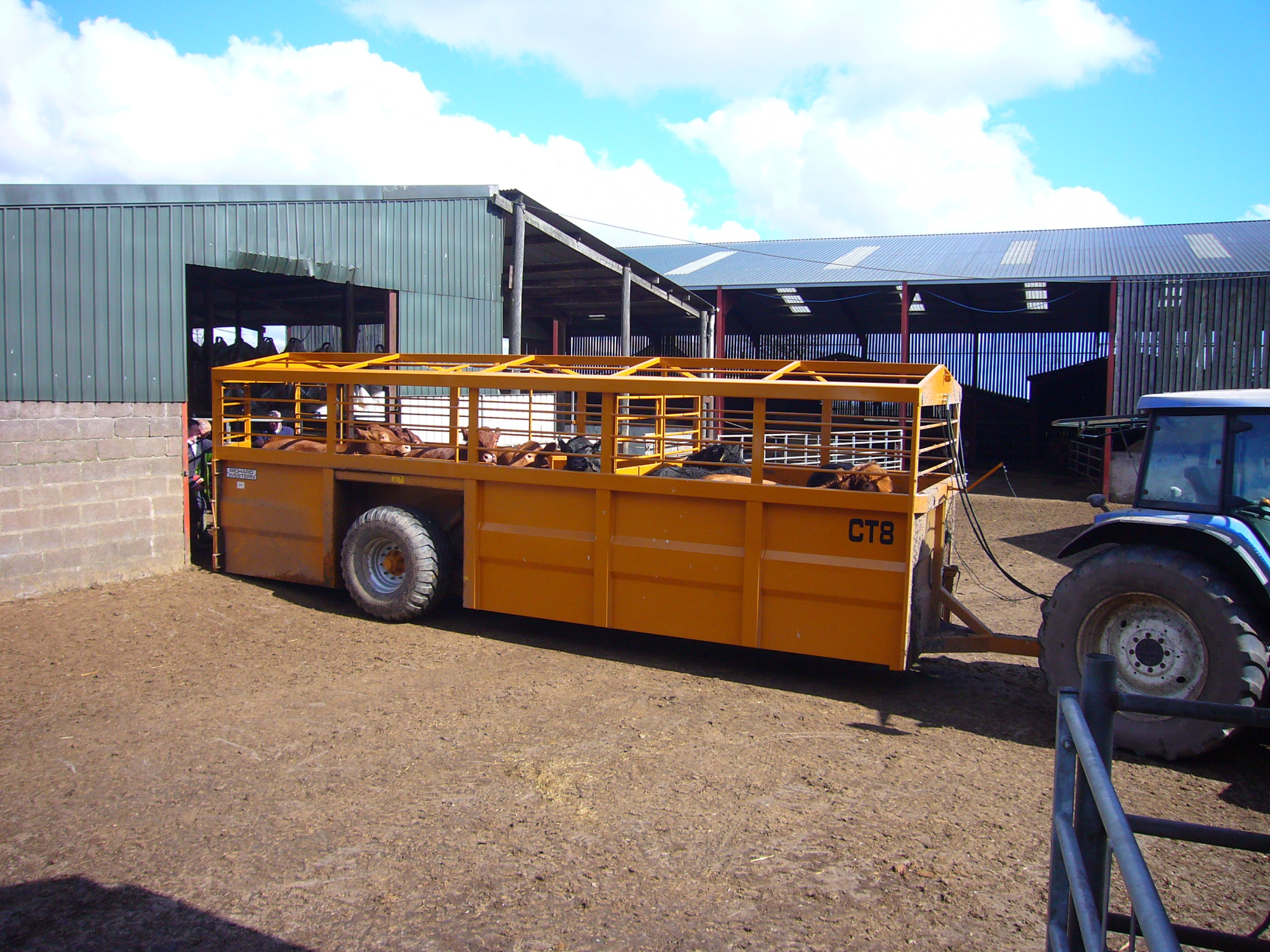

Designed for the easy and stress free loading and unloading of livestock, we offer a range of drop bed livestock transporters for all types of farm animals. The Easy-Load Livestock Transporter has a steel construction with chequer plate floor, steel sides with railed upper sections, internal dividers and canvas roof cover. The bed of the trailer lowers to the ground for loading by pivoting the axle. Using the tractor hydraulics, the axle is returned to the transport position and locked in place for transport.
Size options available for cattle and pig transport.
Standard Features
- Hydraulic lifting body
- Hydraulic brakes
- LED lights
- Durbar floor

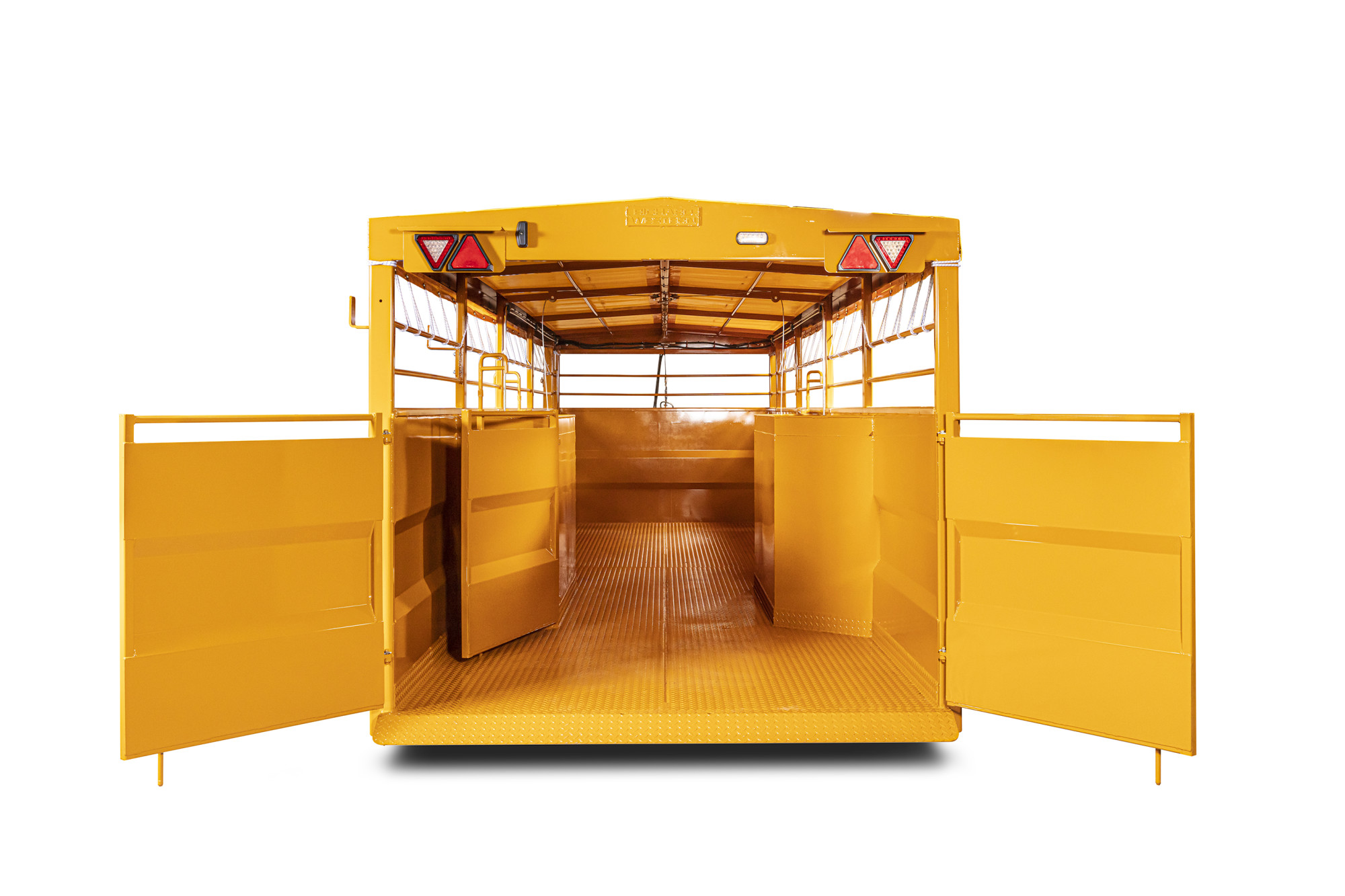

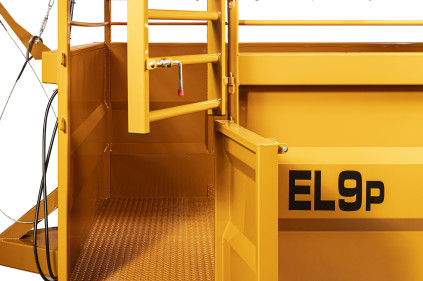

- Internal divider gates
- Canvas roof cover
Optional Extras
- Pig or cattle models
- Extra dividing gates
- Herding gates with hangers and hinges

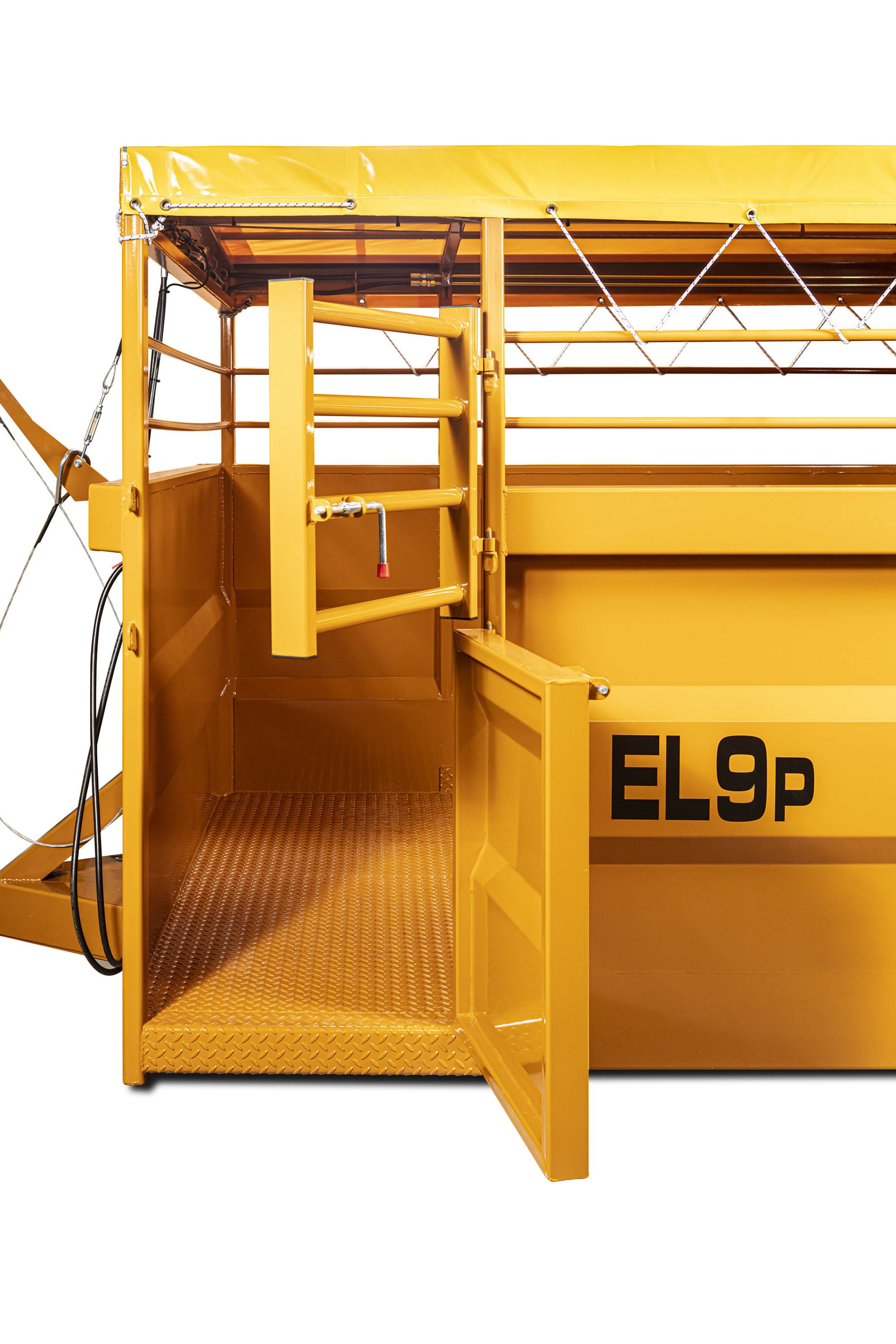

- Side loading/personnel door
- Range of flotation tyres

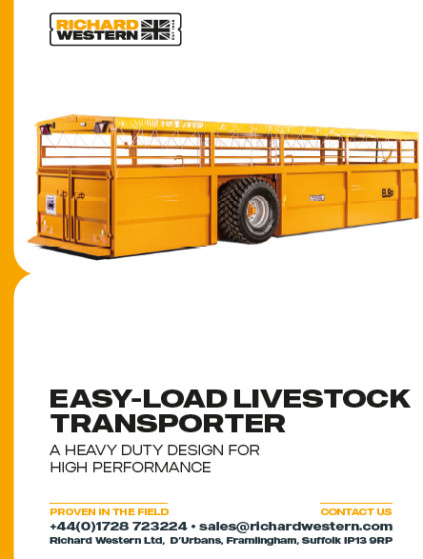

Downloads
Product Specification
Compare productsTo compare product specifications, tick up to five models then “Compare products”
| Overall Length | 9.87m |
|---|---|
| Internal Width | 2.25m |
| Internal Height | 2.15m |
| Mid Rail Height | 1.25m |
| Transport Height | 2.88m |
| Body Length | 8.00m |
| Number of Axles | 1 |
| Tare Weight | 5100kg |
| Tyres | 15 X 22.5 - 18PR REM |
| Overall Length | 9.87m |
|---|---|
| Internal Width | 2.25m |
| Internal Height | 2.39m |
| Mid Rail Height | 1.37m |
| Transport Height | 3.12m |
| Body Length | 8.00m |
| Number of Axles | 1 |
| Tare Weight | 5250kg |
| Tyres | 15 X 22.5 - 18PR REM |
| Overall Length | 11.01m |
|---|---|
| Internal Width | 2.25m |
| Internal Height | 2.15m |
| Mid Rail Height | 1.25m |
| Transport Height | 2.88m |
| Body Length | 9.14m |
| Number of Axles | 1 |
| Tare Weight | 5750kg |
| Tyres | 15 X 22.5 - 18PR REM |
| Overall Length | 11.01m |
|---|---|
| Internal Width | 2.25m |
| Internal Height | 2.39m |
| Mid Rail Height | 1.37m |
| Transport Height | 3.12m |
| Body Length | 9.14m |
| Number of Axles | 1 |
| Tare Weight | 5900kg |
| Tyres | 15 X 22.5 - 18PR REM |
| Overall Length | 9.87m |
|---|---|
| Internal Width | 2.25m |
| Internal Height | 2.15m |
| Mid Rail Height | 1.25m |
| Transport Height | 2.88m |
| Body Length | 8.00m |
| Number of Axles | 1 |
| Tare Weight | 5100kg |
| Tyres | 15 X 22.5 - 18PR REM |
| Overall Length | 9.87m |
|---|---|
| Internal Width | 2.25m |
| Internal Height | 2.39m |
| Mid Rail Height | 1.37m |
| Transport Height | 3.12m |
| Body Length | 8.00m |
| Number of Axles | 1 |
| Tare Weight | 5250kg |
| Tyres | 15 X 22.5 - 18PR REM |
| Overall Length | 11.01m |
|---|---|
| Internal Width | 2.25m |
| Internal Height | 2.15m |
| Mid Rail Height | 1.25m |
| Transport Height | 2.88m |
| Body Length | 9.14m |
| Number of Axles | 1 |
| Tare Weight | 5750kg |
| Tyres | 15 X 22.5 - 18PR REM |
| Overall Length | 11.01m |
|---|---|
| Internal Width | 2.25m |
| Internal Height | 2.39m |
| Mid Rail Height | 1.37m |
| Transport Height | 3.12m |
| Body Length | 9.14m |
| Number of Axles | 1 |
| Tare Weight | 5900kg |
| Tyres | 15 X 22.5 - 18PR REM |
