Drill Filler / Meal & Pellet Feeder
Easy delivery to
Drills and spreaders
About this product:
Overview
Downloads
Gallery
Options
Video
Dimensions
STD Features
Overview

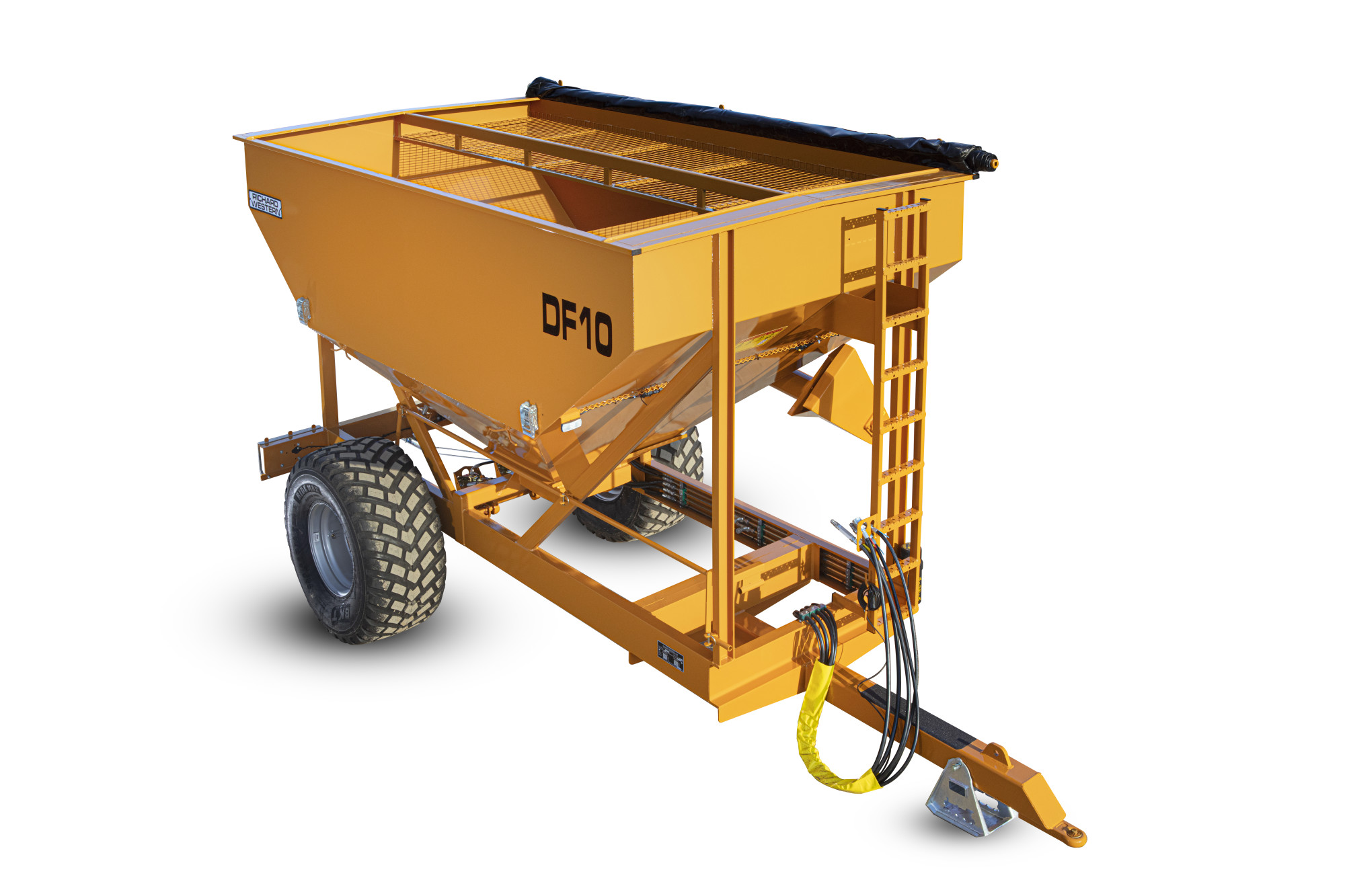

The Richard Western hydraulically driven hopper trailer is designed for livestock and arable duties. It is the ideal machine to be used for a seed drill tender or re-stocking feed on an outdoor pig unit. The hydraulic motor is controlled by a rope from the auger end of the filling auger. To give access to the top of the hopper, a ladder and mesh grid are provided. A waterproof cover is also supplied.
DF12 & DF16 have a trough type hopper with feed auger.
Available in 10, 12 and 16 tonne models.
Downloads
RW Product Guide
Product Brochure
Gallery
Options
- Flashing LED beacon
- LED work lights
- Centre divider - knife gate for each compartment
- Heavy duty mudguards
- Remote control complete with spool valve
- Extensions for DF10 for auger or hopper
Video

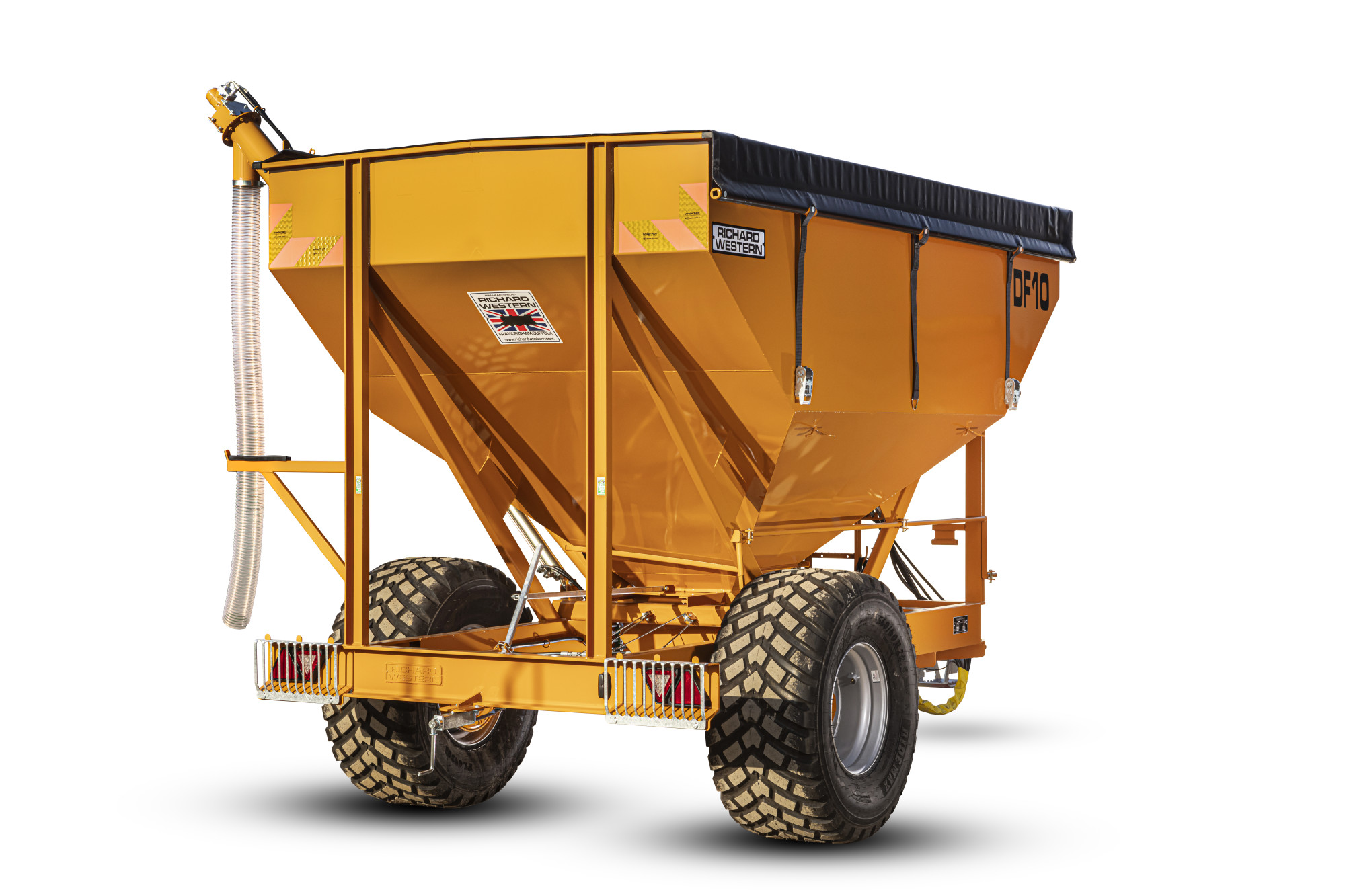

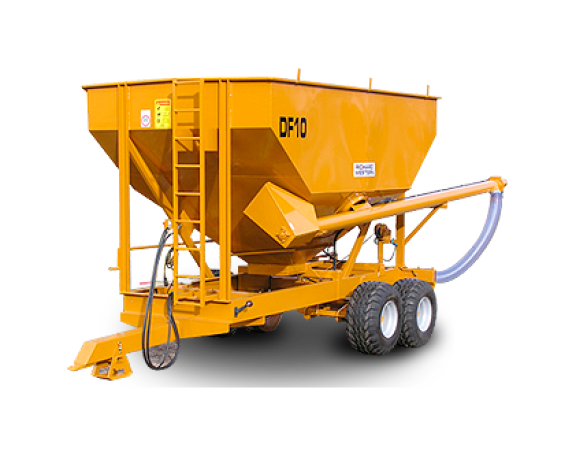

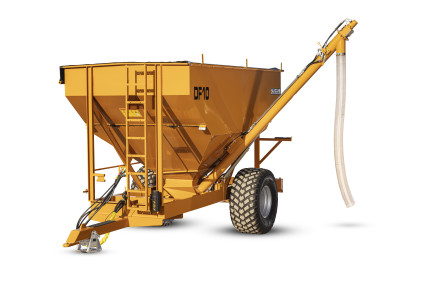

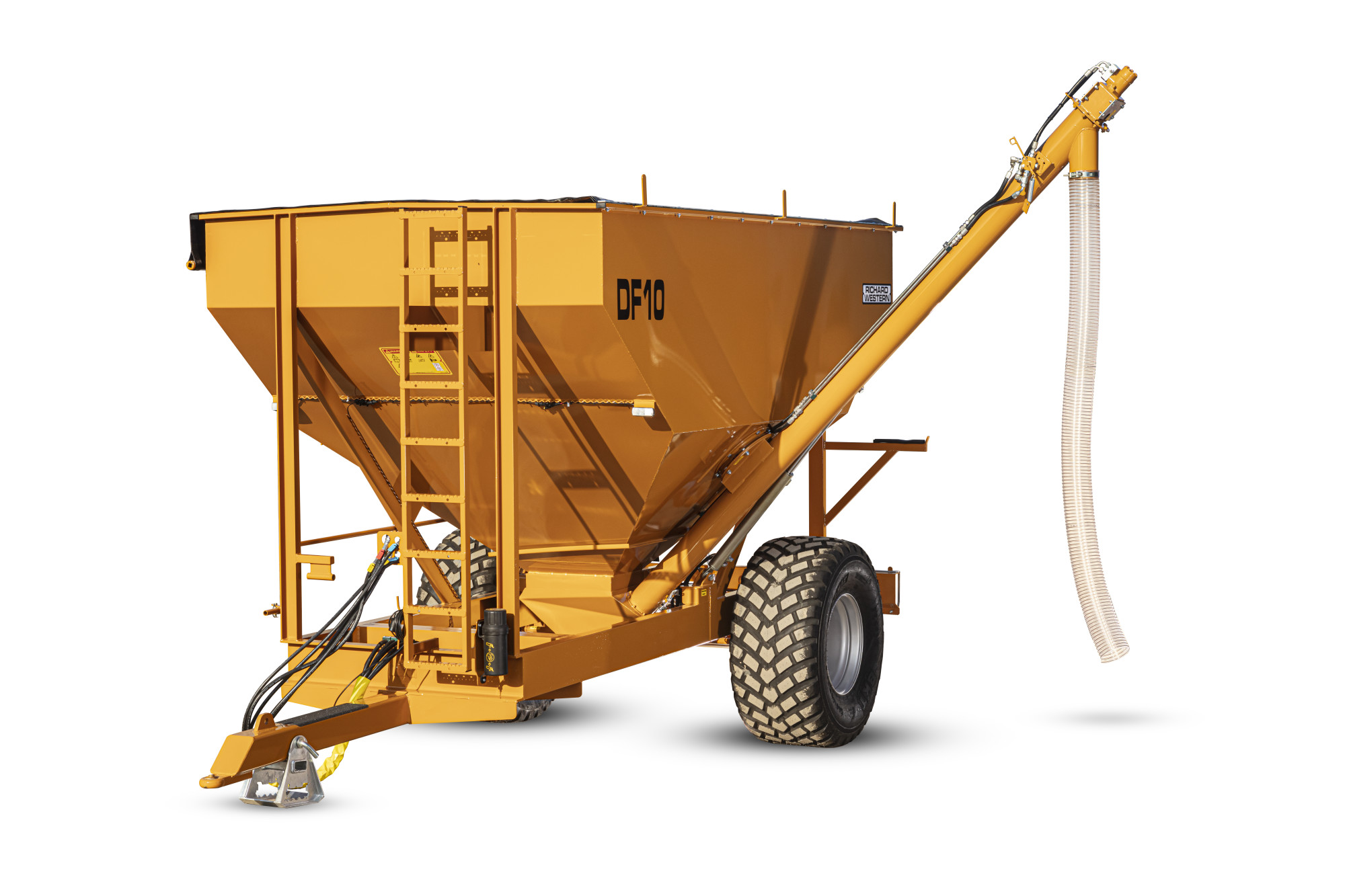

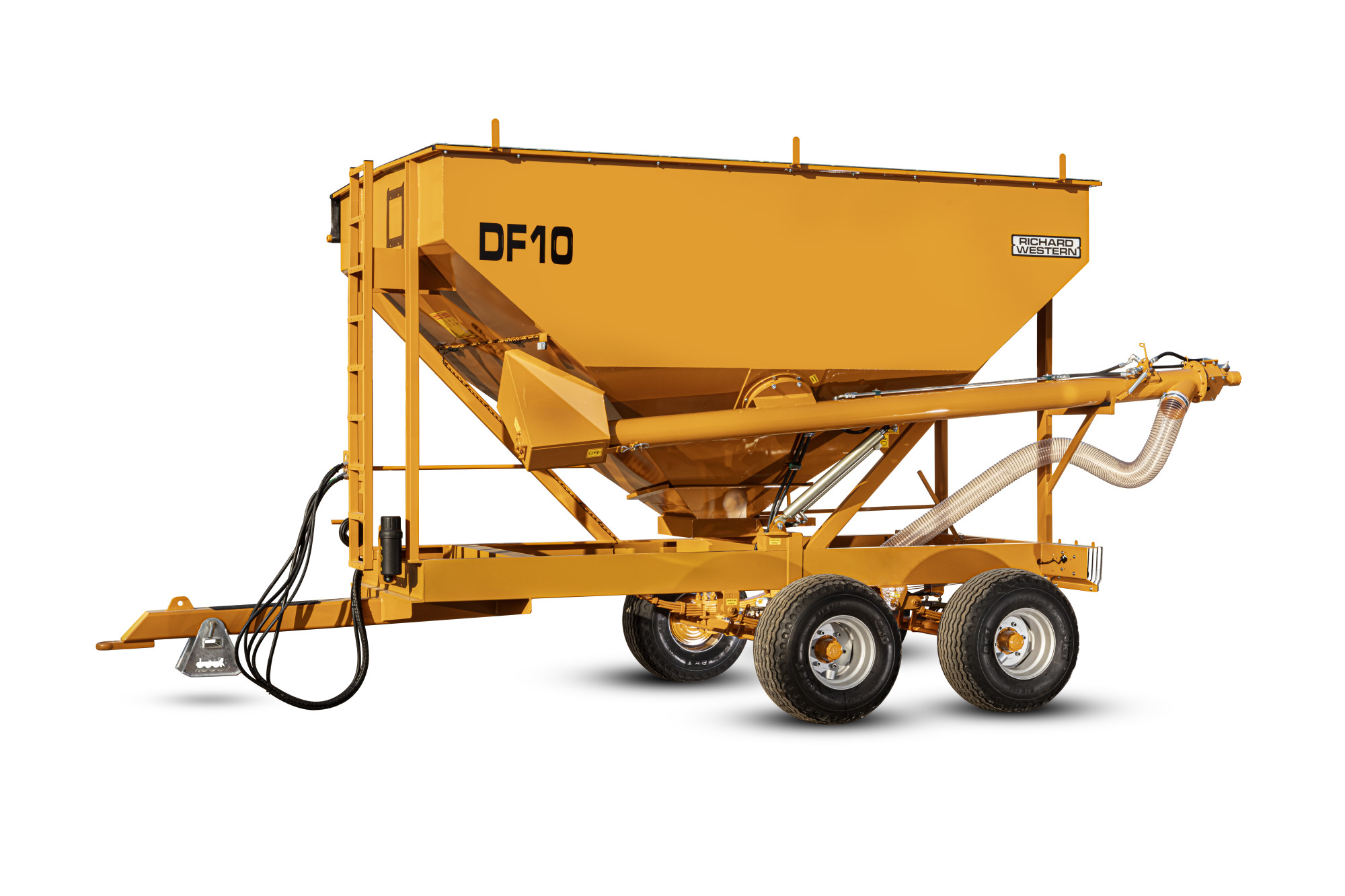

DF10
DF10T
DF12
DF16
DF10
| Area |
Unit
Metric
Imperial
|
|---|---|
| Axle track | 2m |
| Body Width | 2.29m |
| Capacity | 11.10 cu.m |
| Number of axles | 1 |
| Body Length | 4.07m |
| Standard tyre size | 560/60R22.5 |
| Top rail height | 3.1m |
| Auger height | 3.23m |
| Body Width Internal | |
| Body Width External | |
| Unloading height | |
| Capacity | |
| Number Of Axles | |
| Axle Track | |
| Tyres |
DF10T
| Area |
Unit
Metric
Imperial
|
|---|---|
| Axle track | 2m |
| Body Width | 2.29m |
| Capacity | 11.10 cu.m |
| Number of axles | 2 |
| Body Length | 4.07m |
| Standard tyre size | 400/60R15.5 |
| Top rail height | 3.1m |
| Auger height | 3.23m |
| Body Width Internal | |
| Body Width External | |
| Unloading height | |
| Capacity | |
| Number Of Axles | |
| Axle Track | |
| Tyres |

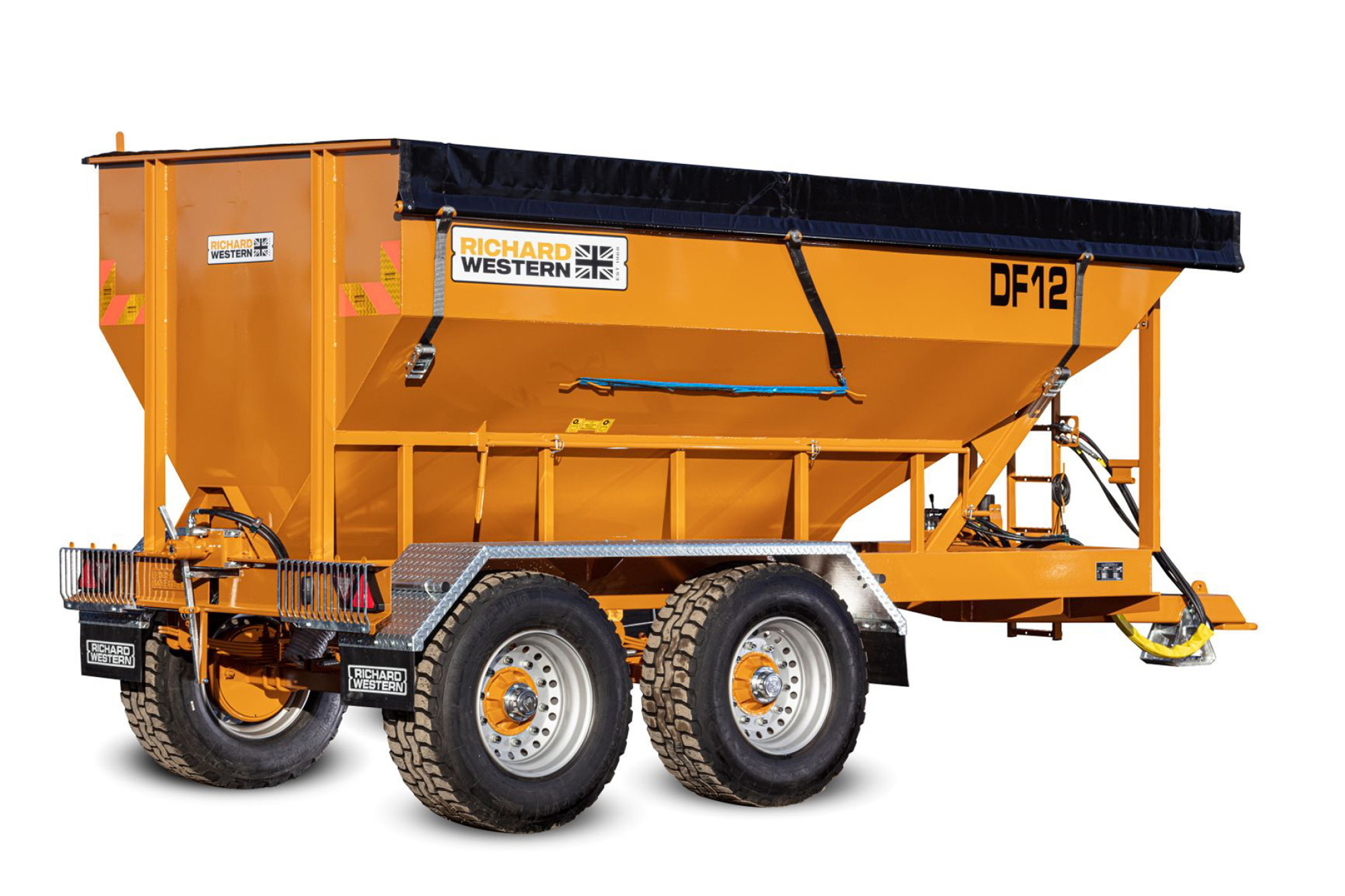

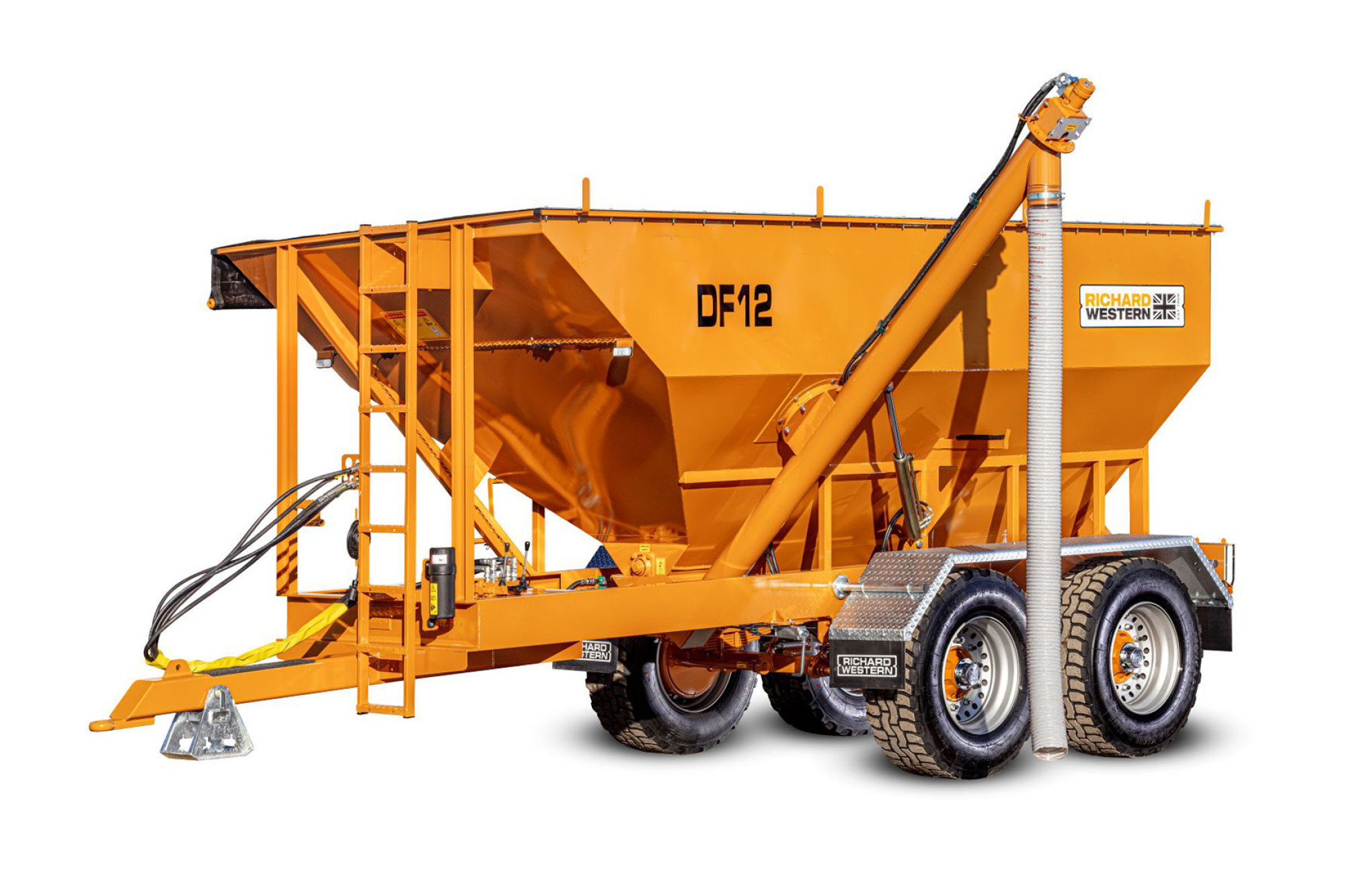

DF12
| Area |
Unit
Metric
Imperial
|
|---|---|
| Capacity | 12.20 cu.m |
| Number of axles | 2 |
| Body Length | 5.07m |
| Standard tyre size | 385/65R22.5 |
| Top rail height | 2.85m |
| Auger height | 2.84m |
| Axle track | 2m |
| Body Width | 2.29m |
DF16
| Area |
Unit
Metric
Imperial
|
|---|---|
| Capacity | 16.00 cu.m |
| Number of axles | 2 |
| Body Length | 5.07m |
| Standard tyre size | 385/65R22.5 |
| Top rail height | 3.30m |
| Auger height | 2.84m |
| Axle track | 2m |
| Body Width | 2.29m |
STD Features
- Hydraulic driven unloading auger
- Hydraulic brakes and parking brake
- Roll over waterproof cover
- Ladder and mesh grid
- LED road lights with indicator ballast control
- Single or tandem axle option for DF10
