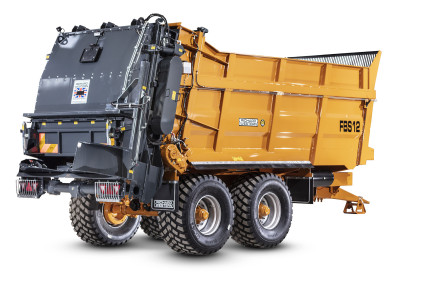

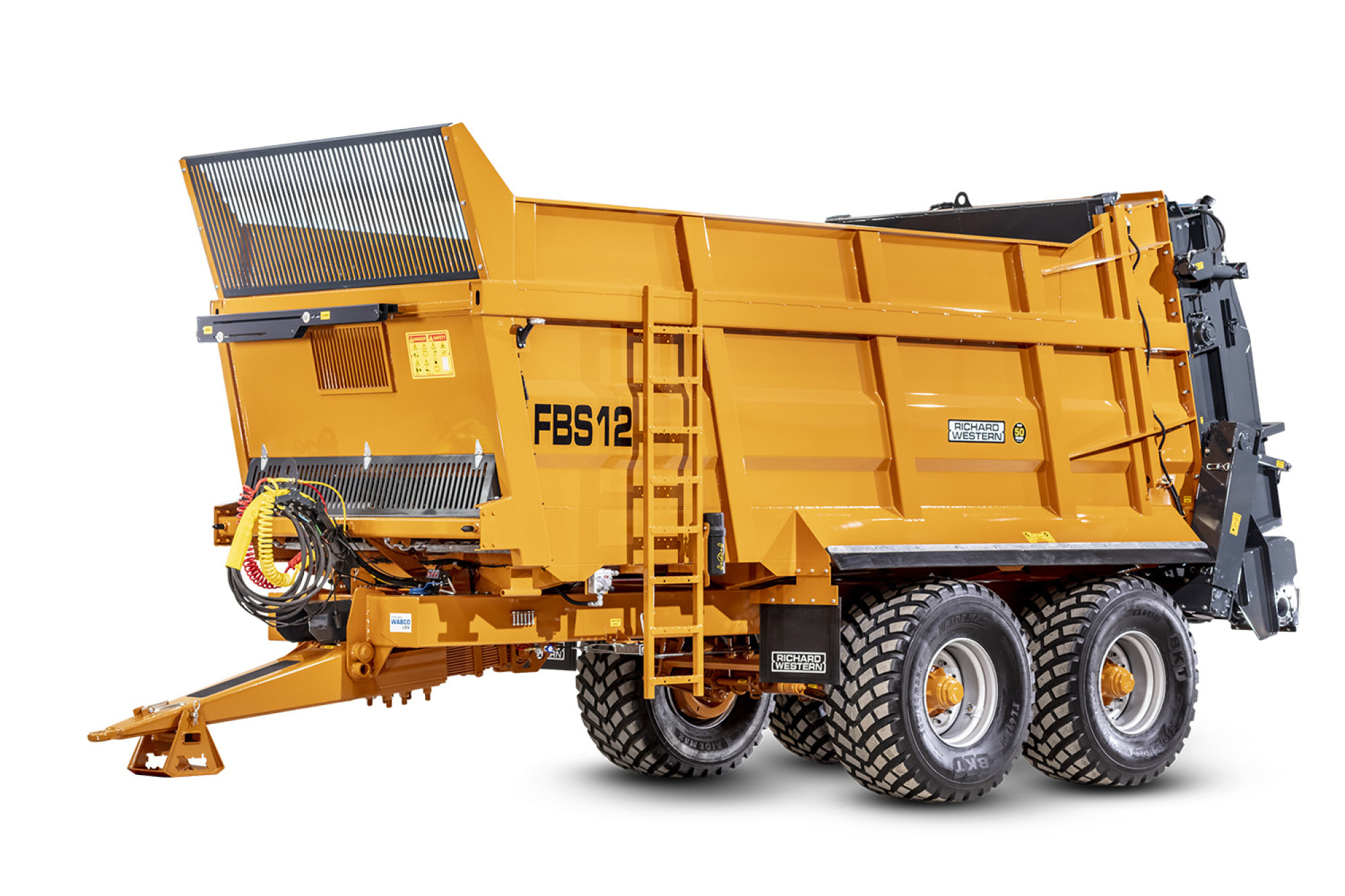

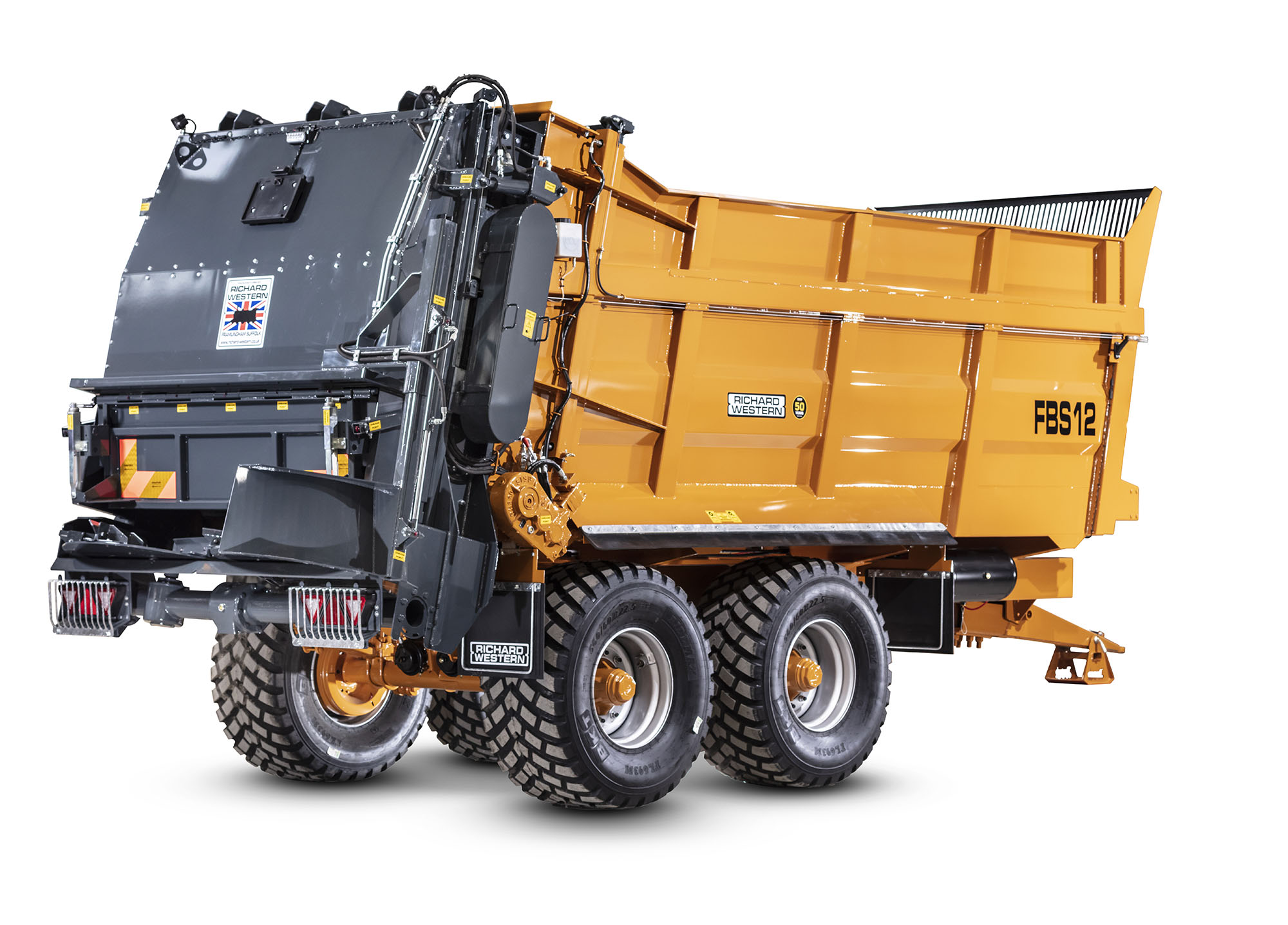

FBS Rear Discharge Spreader
Versatile spreader, high application rates
The wide-bodied FBS spreader is available with twin vertical beaters or horizontal beaters with spinning discs and is designed to handle all types of farmyard manures sludges and waste products. With a 2m wide body and large cubic capacity, the FBS is particularly suited to handling low density manures. The variable floor speed control ensures constant delivery at high application rates.
Available in 12, 16 tonne models with tandem or tri-axles, the FBS spreader is suitable for farmyard manure, semi-solid, poultry litter, industrial sludges and waste products.
Standard Features
- Sprung drawbar
- Robust construction with 6mm floor and 4mm sides
- Wide angle PTO with shear bolt protection
- One piece rotor gearbox unit
- Variable speed hydraulic floor drive, pressure protected with reverse function

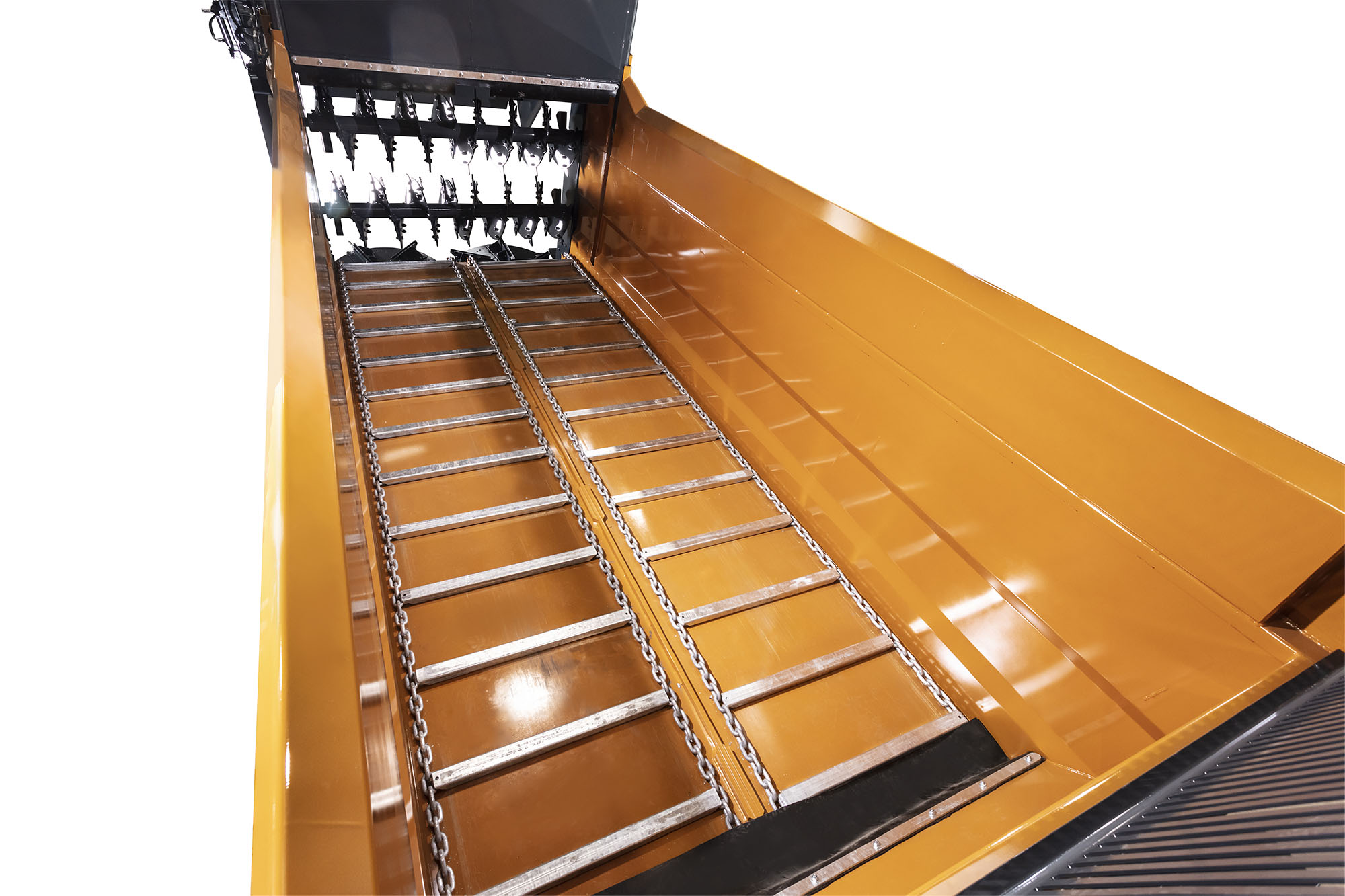

- 4 heavy duty bed chains
- 60mm floor drive shaft with self cleaning sprockets

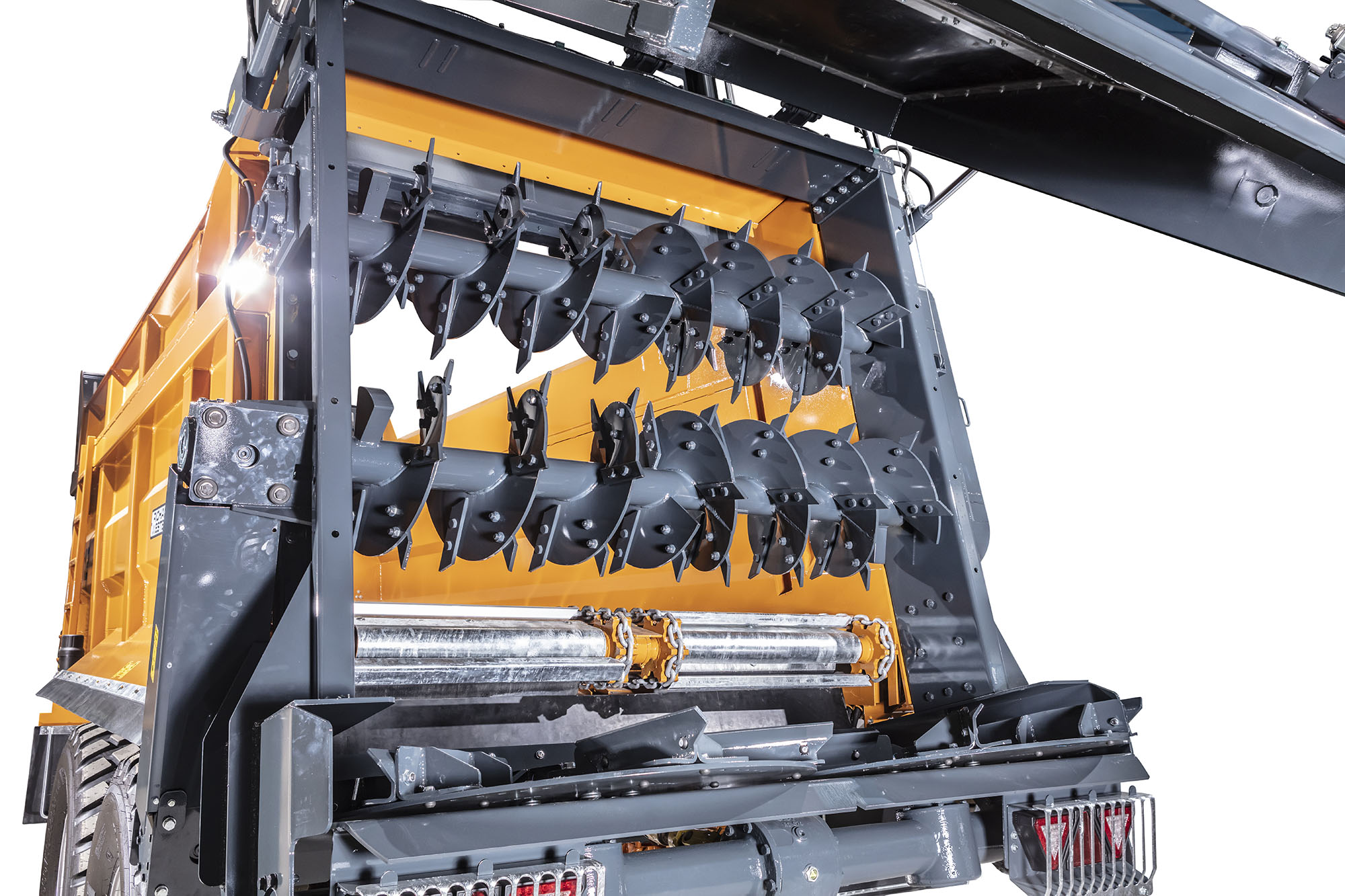

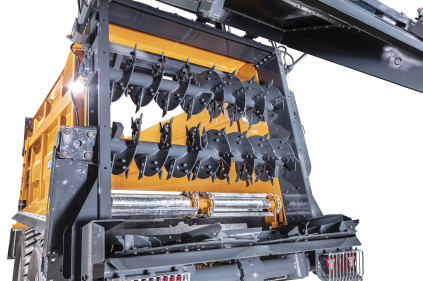

- 10mm thick continuous spiral auger beaters for maximum shredding
Optional Extras
- Range of flotation tyres to suit your needs
- Hydraulic slurry door
- Greedy boards
- Rear drawbar with brakes and electrics
- Electronic bed speed control
- GPS ground speed control with valve block
- Fully automated weighing and recording equipment with GPS
- Weigh cells
- Horizontal beaters with spinning discs
Key Benefits
- Trouble-free running - We use the highest quality bearings, bearing assemblies and bushings with easy access grease points, so your spreader keeps working with minimal down time. The electronically balanced spreading rotors eliminate vibration during operation. The unique rotor design and blade pattern allows you to spread all types of manure without the trouble and fuss of changing spreader decks.
- Maximum output - Large diameter rotors and a high tip speed give you wide spreading width and excellent shredding on a range of manures, composts and sludges.

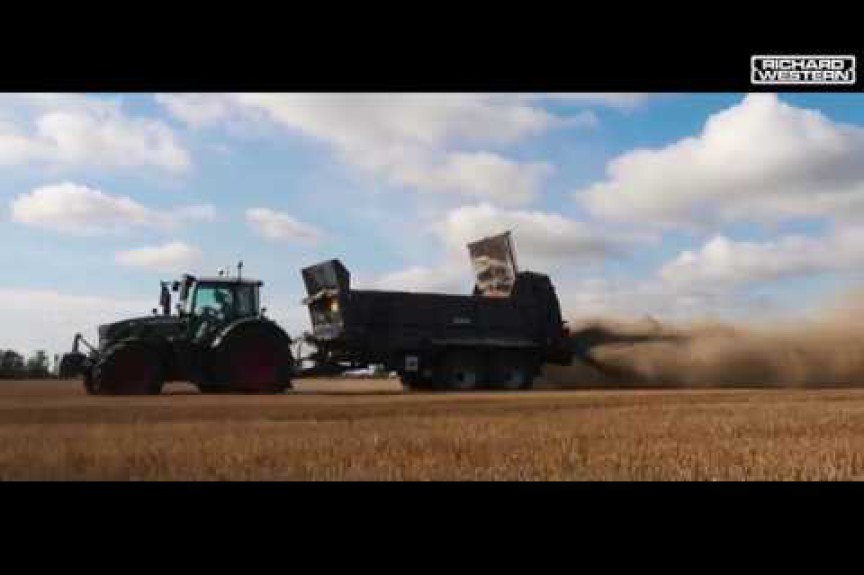

Product in action
Product Specification
Compare productsTo compare product specifications, tick up to five models then “Compare products”
| Overall length (mm) | 8,170 |
|---|---|
| Overall height (mm) | 3,500 |
| Overall width (mm) | 2,600 |
| Interior length (mm) | 4,675 |
| Interior width at bottom (mm) | 2,000 |
| Interior width at top - loading (std/ext,mm) | 2,000/2,650 |
| Interior height (std/ext,mm) | 1,090/1,650 |
| Loading height (std/ext,mm) | 2,660/3,060 |
| Level fill cu.m | 10.3 cu.m |
| Level fill with extensions cu.m | 16.4 cu.m |
| Heaped fill without ext / with ext (cu.m) | 13.4 cu.m / 21.0 cu.m |
| Carrying capacity (kg) | 22,500 |
| Axles (qty, track/beam, mm) | 2 x 2,000/Ø127x16 |
| Brake size (Ø x W, mm) | 420x180 |
| Standard tyre size | 560/60R22.5 |
| Disc/rotor Ø (mm) | 1100 |
| Floor chains (qty x Ø, mm) | 4 x 14mm |
| Floor driveshaft Ø (mm) | 60 |
| Power requirement (hp) | 180 |
| PTO speed (rpm) | 1000 |
| Tare weight (kg) | 8,200 |
| Overall length (mm) | 9,150 |
|---|---|
| Overall height (mm) | 3,500 |
| Overall width (mm) | 2,600 |
| Interior length (mm) | 5,340 |
| Interior width at bottom (mm) | 2,000 |
| Interior width at top - loading (std/ext,mm) | 2,000/2,650 |
| Interior height (std/ext,mm) | 1,090/1,650 |
| Loading height (std/ext,mm) | 2,660/3,060 |
| Level fill cu.m | 12.2 cu.m |
| Level fill with extensions cu.m | 18.8 cu.m |
| Heaped fill without ext / with ext (cu.m) | 15.8 cu.m / 23.7 cu.m |
| Carrying capacity (kg) | 25,000 |
| Axles (qty, track/beam, mm) | 2 x 2,000/150x150x12 |
| Brake size (Ø x W, mm) | 420x180 |
| Standard tyre size | 560/60R22.5 |
| Disc/rotor Ø (mm) | 1100 |
| Floor chains (qty x Ø, mm) | 4 x 14 mm |
| Floor driveshaft Ø (mm) | 60 |
| Power requirement (hp) | 220 |
| PTO speed (rpm) | 1000 |
| Tare weight (kg) | 9,600 |
| Overall length (mm) | 10,040 |
|---|---|
| Overall height (mm) | 3,500 |
| Overall width (mm) | 2,600 |
| Interior length (mm) | 6,290 |
| Interior width at bottom (mm) | 2,000 |
| Interior width at top - loading (std/ext,mm) | 2,000/2,650 |
| Interior height (std/ext,mm) | 1,090/1,650 |
| Loading height (std/ext,mm) | 2,660/3,060 |
| Level fill cu.m | 14.4 cu.m |
| Level fill with extensions cu.m | 22.2 cu.m |
| Heaped fill without ext / with ext (cu.m) | 18.6 cu.m / 28.0 cu.m |
| Carrying capacity (kg) | 25,000 |
| Axles (qty, track/beam, mm) | 2 x 2,000/150x150x12 |
| Brake size (Ø x W, mm) | 420x180 |
| Standard tyre size | 560/60R22.5 |
| Disc/rotor Ø (mm) | 1100 |
| Floor chains (qty x Ø, mm) | 4 x 14mm |
| Floor driveshaft Ø (mm) | 60 |
| Power requirement (hp) | 250 |
| PTO speed (rpm) | 1000 |
| Tare weight (kg) | 10,800 |
| Overall length (mm) | 8,170 |
|---|---|
| Overall height (mm) | 3,500 |
| Overall width (mm) | 2,600 |
| Interior length (mm) | 4,675 |
| Interior width at bottom (mm) | 2,000 |
| Interior width at top - loading (std/ext,mm) | 2,000/2,650 |
| Interior height (std/ext,mm) | 1,090/1,650 |
| Loading height (std/ext,mm) | 2,660/3,060 |
| Level fill cu.m | 10.3 cu.m |
| Level fill with extensions cu.m | 16.4 cu.m |
| Heaped fill without ext / with ext (cu.m) | 13.4 cu.m / 21.0 cu.m |
| Carrying capacity (kg) | 22,500 |
| Axles (qty, track/beam, mm) | 2 x 2,000/Ø127x16 |
| Brake size (Ø x W, mm) | 420x180 |
| Standard tyre size | 560/60R22.5 |
| Disc/rotor Ø (mm) | 1100 |
| Floor chains (qty x Ø, mm) | 4 x 14mm |
| Floor driveshaft Ø (mm) | 60 |
| Power requirement (hp) | 180 |
| PTO speed (rpm) | 1000 |
| Tare weight (kg) | 8,200 |
| Overall length (mm) | 9,150 |
|---|---|
| Overall height (mm) | 3,500 |
| Overall width (mm) | 2,600 |
| Interior length (mm) | 5,340 |
| Interior width at bottom (mm) | 2,000 |
| Interior width at top - loading (std/ext,mm) | 2,000/2,650 |
| Interior height (std/ext,mm) | 1,090/1,650 |
| Loading height (std/ext,mm) | 2,660/3,060 |
| Level fill cu.m | 12.2 cu.m |
| Level fill with extensions cu.m | 18.8 cu.m |
| Heaped fill without ext / with ext (cu.m) | 15.8 cu.m / 23.7 cu.m |
| Carrying capacity (kg) | 25,000 |
| Axles (qty, track/beam, mm) | 2 x 2,000/150x150x12 |
| Brake size (Ø x W, mm) | 420x180 |
| Standard tyre size | 560/60R22.5 |
| Disc/rotor Ø (mm) | 1100 |
| Floor chains (qty x Ø, mm) | 4 x 14 mm |
| Floor driveshaft Ø (mm) | 60 |
| Power requirement (hp) | 220 |
| PTO speed (rpm) | 1000 |
| Tare weight (kg) | 9,600 |
| Overall length (mm) | 10,040 |
|---|---|
| Overall height (mm) | 3,500 |
| Overall width (mm) | 2,600 |
| Interior length (mm) | 6,290 |
| Interior width at bottom (mm) | 2,000 |
| Interior width at top - loading (std/ext,mm) | 2,000/2,650 |
| Interior height (std/ext,mm) | 1,090/1,650 |
| Loading height (std/ext,mm) | 2,660/3,060 |
| Level fill cu.m | 14.4 cu.m |
| Level fill with extensions cu.m | 22.2 cu.m |
| Heaped fill without ext / with ext (cu.m) | 18.6 cu.m / 28.0 cu.m |
| Carrying capacity (kg) | 25,000 |
| Axles (qty, track/beam, mm) | 2 x 2,000/150x150x12 |
| Brake size (Ø x W, mm) | 420x180 |
| Standard tyre size | 560/60R22.5 |
| Disc/rotor Ø (mm) | 1100 |
| Floor chains (qty x Ø, mm) | 4 x 14mm |
| Floor driveshaft Ø (mm) | 60 |
| Power requirement (hp) | 250 |
| PTO speed (rpm) | 1000 |
| Tare weight (kg) | 10,800 |
