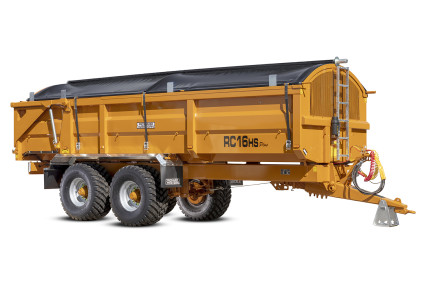

Rootcrop Trailer

Reduces crop damage

A low line trailer designed to facilitate damage-free root crop harvesting. The Rootcrop Trailer has a low side height of 3’9” and a long, tapered body to reduce crop damage. Designed and engineered to maximise efficiency, the trailer body is constructed using pressed steel and channel sections to optimise the strength to weight ratio, and the tipping pivot at the rear end prevents the tail end dropping.

Available in 13 to 18 tonne models with a range of options, you can customise the Rootcrop Trailer to meet your needs.



HS model

Designed for high speed tractors, all fitted with high speed commercial axles on 420mm x 180mm brakes.

Standard Features

  • Monocoque tapered body with 4mm floor and 3mm sides
  • 55 degree tipping body with anti-corrosive tipping rams
  • Hydraulic tailgate with rubber seal, auto lock and hydraulic safety check valve
  • 2m axle track, 10 stud commercial axles
  • Hydraulic or air brakes with load sensing valves
  • LED road lights and side markers with indication ballast control
  • Height adjustable sprung drawbar and heavy-duty mono leaf springs
  • Inspection ladder
  • Body prop
  • Chassis shock absorption pads
  • Arched front window with Perspex panel

Optional Extras

  • 6mm floor and 4mm sides
  • Dual brakes - Hydraulic and air brakes with load sensing valve
  • Range of flotation tyres to suit your needs
  • ABS on air brakes
  • Auto slack adjusters
  • Work lights complete with pressure switch from tip circuit
  • Rear steering axle with hydraulic lock-out or active steering axle
  • Manual roll over sheeting system
  • Side to side hydraulic roll over sheeting system
  • Headboard mounted hydraulic roll over sheeting system
  • Silage sides
  • Load cell weighing equipment c/w trailer mounted display, 4 load cells
  • Hydraulic pressure load electric indicator kit
  • 8 bolt flange bolt-on swivel eye or K80 spoon
  • 8 bolt flange bolt-on 50mm eye
  • Weld on swivel eye
  • Plastic toolbox
  • Rear towing out points
  • Rear drawbar c/w brakes and electrics

Optional Equipment

Tyres, Axles, Brakes and Paint

Key Benefits

  • Highly rated towing qualities. Our commercial mono leaf spring suspension system is designed specifically for agriculture to reduce body roll, giving you greater stability on hillsides and uneven terrain. The height adjustable sprung drawbar system provides active suspension with rebound control.
  • Faster tipping. Single six-stage vertical pushing tipping rams with a 55 degree tipping angle reduce tipping times and prevent unnecessary strain on the trailer body.
  • Low unladen weight for maximum efficiency. Our trailers are constructed using pressed steel and channel sections to optimise the strength to weight ratio, enabling you to deliver full payloads with a low unladen weight.

How we engineer the strength in our trailer

Product in action

Richard Western Trailers

Product Specification

Compare products

To compare product specifications, tick up to five models then “Compare products”


Capacity (m³) 15.93(m³)
Body Height 1.15m
Body Length 6.31m
Front Width 2.13m
Rear Width 2.27m
Top Rail Height 2.52m
Number of Axles 2
Axle Track 2.0m
Tyres 560/60R22.5
Capacity (m³) 16.90(m³)
Body Height 1.22m
Body Length 6.31m
Front Width 2.13m
Rear Width 2.27m
Top Rail Height 2.59m
Number of Axles 2
Axle Track 2.0m
Tyres 560/60R22.5
Capacity (m³) 16.96(m³)
Body Height 1.15m
Body Length 6.78(m³)
Front Width 2.13m
Rear Width 2.27m
Top Rail Height 2.52m
Number of Axles 2
Axle Track 2.0m
Tyres 560/60R22.5
Capacity (m³) 18.19(m³)
Body Width Internal
Body Height 1.22m
Body Width External
Unloading height
Body Length 6.78m
Capacity
Front Width 2.13m
Rear Width 2.27m
Number Of Axles
Top Rail Height 2.59m
Axle Track
Tyres
Number of Axles 2
Axle Track 2.0m
Tyres 560/60R22.5
Capacity (m³) 18.56(m³)
Body Height 1.15m
Body Length 7.4m
Front Width 2.13m
Rear Width 2.27m
Top Rail Height 2.57m
Number of Axles 2
Axle Track 2.0m
Tyres 560/60R22.5
Capacity (m³) 19.86(m³)
Body Height 1.22m
Body Length 7.4m
Front Width 2.13m
Rear Width 2.27m
Top Rail Height 2.64m
Number of Axles 2
Axle Track 2.0m
Tyres 560/60R22.5
Capacity (m³) 21.00(m³)
Body Height 1.15m
Body Length 8.4m
Front Width 2.13m
Rear Width 2.27m
Top Rail Height 2.57m
Number of Axles 2
Axle Track 2.0m
Tyres 560/60R22.5
Capacity (m³) 22.50(m³)
Body Height 1.22m
Body Length 8.4m
Front Width 2.13m
Rear Width 2.27m
Top Rail Height 2.64m
Number of Axles 2
Axle Track 2.0m
Tyres 560/60R22.5
Capacity (m³) 15.93(m³)
Body Height 1.15m
Body Length 6.31m
Front Width 2.13m
Rear Width 2.27m
Top Rail Height 2.52m
Number of Axles 2
Axle Track 2.0m
Tyres 560/60R22.5
Capacity (m³) 16.90(m³)
Body Height 1.22m
Body Length 6.31m
Front Width 2.13m
Rear Width 2.27m
Top Rail Height 2.59m
Number of Axles 2
Axle Track 2.0m
Tyres 560/60R22.5
Capacity (m³) 16.96(m³)
Body Height 1.15m
Body Length 6.78(m³)
Front Width 2.13m
Rear Width 2.27m
Top Rail Height 2.52m
Number of Axles 2
Axle Track 2.0m
Tyres 560/60R22.5
Capacity (m³) 18.19(m³)
Body Width Internal
Body Height 1.22m
Body Width External
Unloading height
Body Length 6.78m
Capacity
Front Width 2.13m
Rear Width 2.27m
Number Of Axles
Top Rail Height 2.59m
Axle Track
Tyres
Number of Axles 2
Axle Track 2.0m
Tyres 560/60R22.5
Capacity (m³) 18.56(m³)
Body Height 1.15m
Body Length 7.4m
Front Width 2.13m
Rear Width 2.27m
Top Rail Height 2.57m
Number of Axles 2
Axle Track 2.0m
Tyres 560/60R22.5
Capacity (m³) 19.86(m³)
Body Height 1.22m
Body Length 7.4m
Front Width 2.13m
Rear Width 2.27m
Top Rail Height 2.64m
Number of Axles 2
Axle Track 2.0m
Tyres 560/60R22.5
Capacity (m³) 21.00(m³)
Body Height 1.15m
Body Length 8.4m
Front Width 2.13m
Rear Width 2.27m
Top Rail Height 2.57m
Number of Axles 2
Axle Track 2.0m
Tyres 560/60R22.5
Capacity (m³) 22.50(m³)
Body Height 1.22m
Body Length 8.4m
Front Width 2.13m
Rear Width 2.27m
Top Rail Height 2.64m
Number of Axles 2
Axle Track 2.0m
Tyres 560/60R22.5
