Delilah Spinning Disc Manure Spreader

Accurate spreading control, low application rates

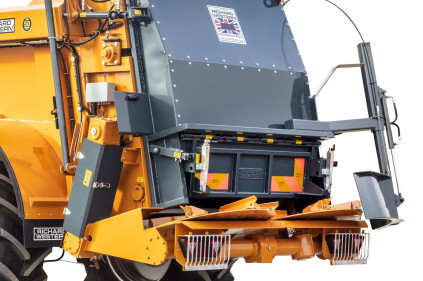

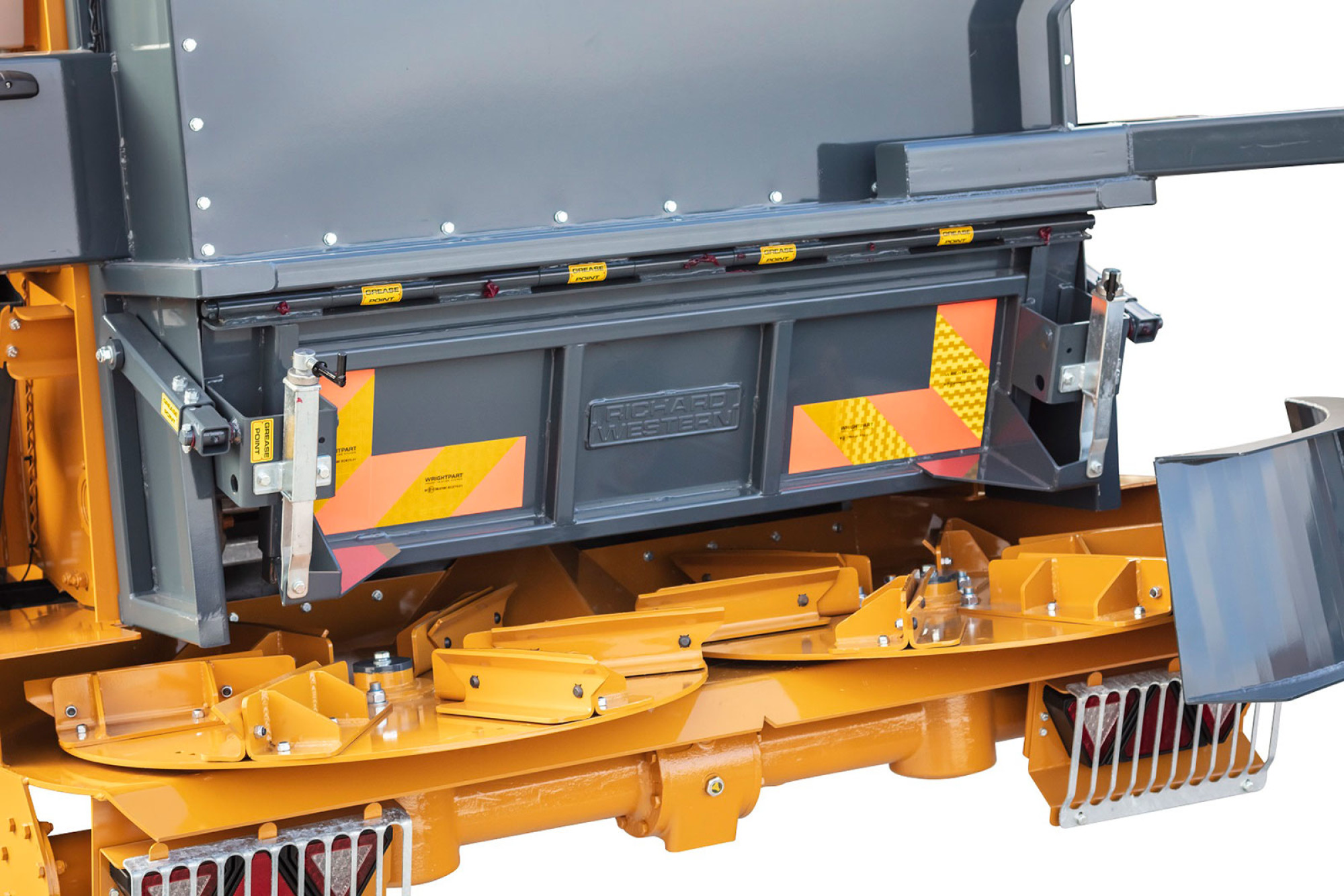

The Delilah 5000 series has twin horizontal beaters and spinning discs, with 6, 3 or 2 blade configuration. For accurate spreading control the lower canopy and blade angle is adjustable. The machines are equipped with a hydraulically operated slurry door, full opening rear canopy, adjustable lower door section and a boundary spread limiter. Full width, close spaced floor slats and adjustable floor speed control ensure a constant delivery for better spread control.

Available in 12 and 15 tonne models with a range of options, the Delilah spinning disc spreader is suitable for wide spread applications and high accuracy spreading.

Standard Features

  • Hydraulic slurry door
  • Variable speed hydraulic floor drive
  • Hydraulic full opening rear canopy
  • Adjustable lower canopy section
  • Boundary spread limiter
  • Wide angled PTO shaft with shear bolt protection and rattle clutch

Optional Extras

  • Choice of tyres to suit your needs
  • Sprung draw bar
  • Rear drawbar with brakes and electrics
  • Electronic bed speed control
  • GPS ground speed control with valve block
  • Fully automated weighing and recording equipment with GPS
  • Weigh cells

Optional Equipment

Tyres, Axles, Brakes and Paint

Key Benefits

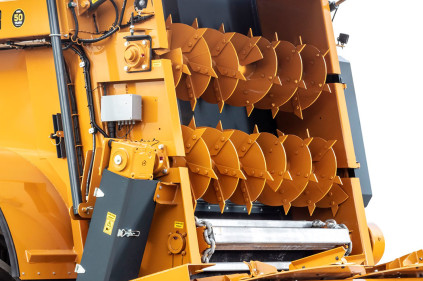

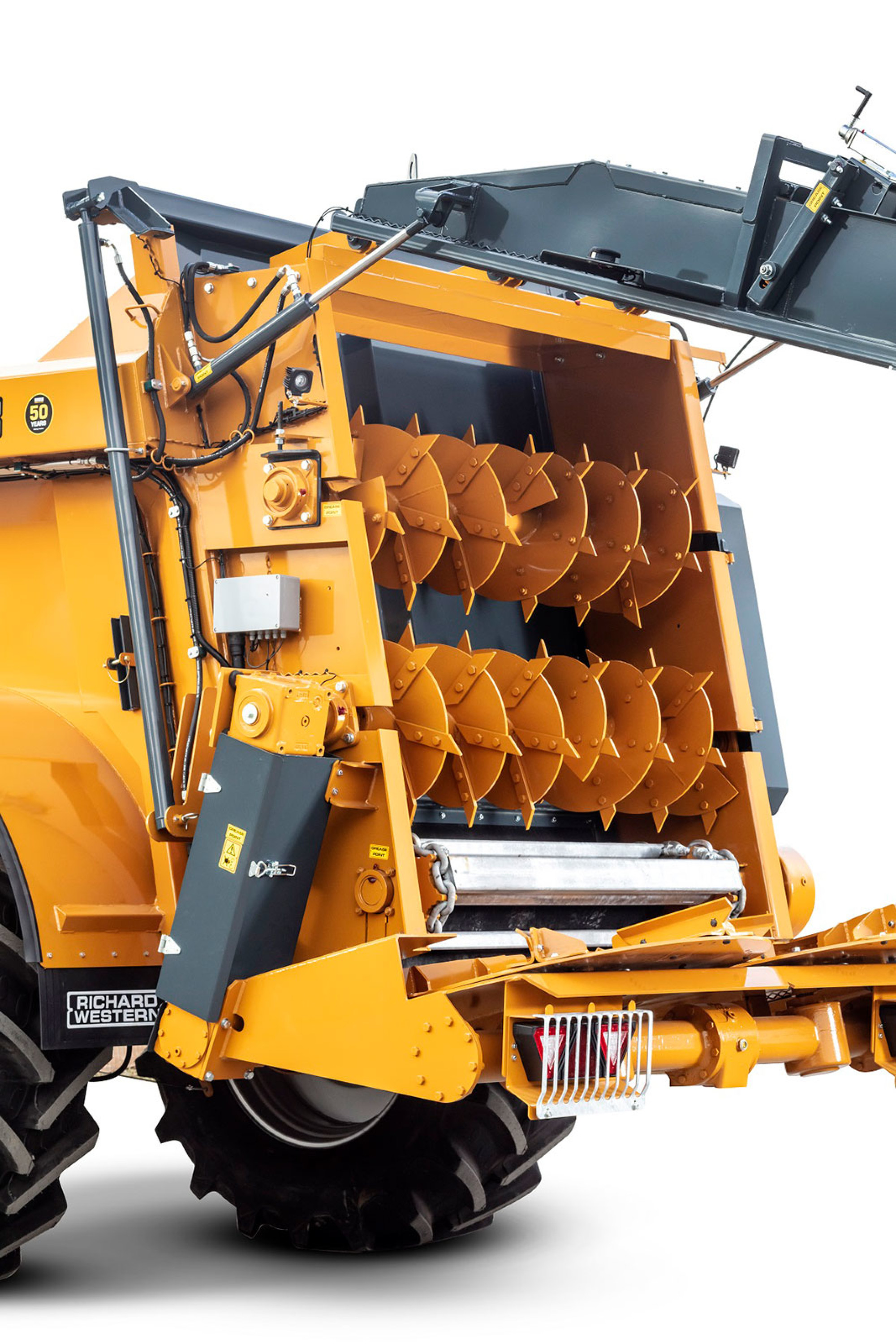

  • High performance spreading - the 5000 series spreaders use twin horizontal beaters and spinning discs. Discs can be run with a 6, 3 or 2 blade configuration with blade angle adjustment and lower canopy adjustment allowing you to set the spreading unit for the job in hand.
  • Trouble-free running - We use the highest quality bearings, bearing assemblies and bushings with easy access grease points, so your Delilah keeps working with minimal down time. The electronically balanced spreading rotors eliminate vibration during operation.

Key features of our spreaders

Product in action

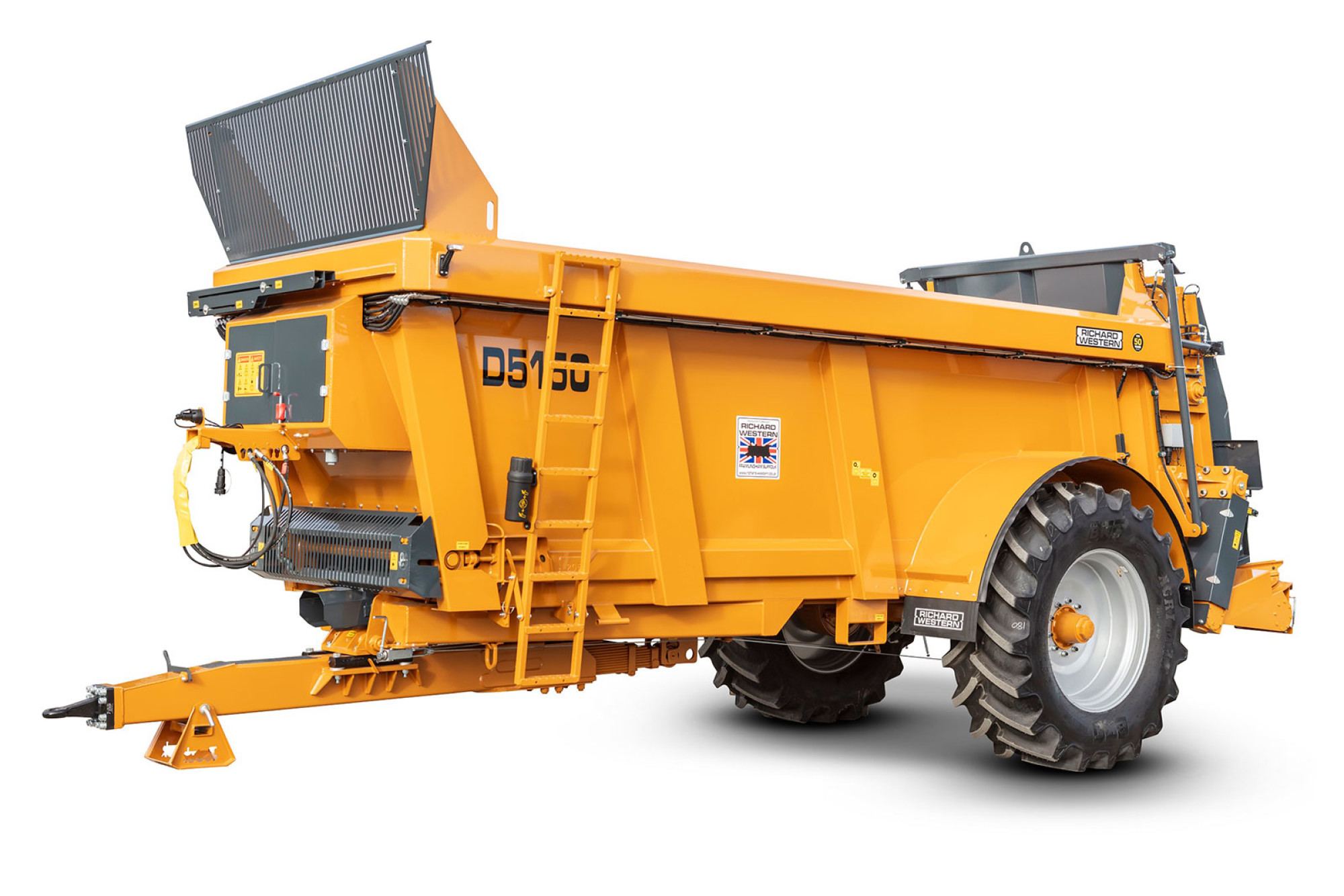

Delilah Spinning Disc Manure Spreader D5150

Product Specification

Compare products

To compare product specifications, tick up to five models then “Compare products”


Overall length (mm) 6,895
Overall height ((mm) 3,710
Overall width (mm) 2,990
Interior length (mm) 4,700
Interior width at bottom (mm) 1,550
Interior width at top - loading width (mm) 2,125
Interior height (mm) 1,230
Loading height (mm) 2,500
Level fill cu.m 9.6 cu.m
Heaped fill cu.m 12.6 cu.m
Axle carrying capacity (kg) 14,000
Axle beam (mm) 150x150x15
Brake size (Ø x W, mm) 420x180
Standard tyre size 580/70R38
Rotor Ø (mm) 614
Disc Ø (mm) 1100
Floor chains (qty x Ø, mm) 2 x 16mm
Floor driveshaft Ø (mm) 65
Power requirement (hp) 150
PTO Speed (rpm) 1000
Tare weight (kg) 6,130
Overall length (mm) 7,895
Overall height ((mm) 3,710
Overall width (mm) 2,990
Interior length (mm) 5,670
Interior width at bottom (mm) 1,550
Interior width at top - loading width (mm) 2,125
Interior height (mm) 1,230
Loading height (mm) 2,500
Level fill cu.m 11.6 cu.m
Heaped fill cu.m 15.2 cu.m
Axle carrying capacity (kg) 16,200
Axle beam (mm) 150x150x16
Brake size (Ø x W, mm) 420x220
Standard tyre size 580/70R38
Rotor Ø (mm) 614
Disc Ø (mm) 110
Floor chains (qty x Ø, mm) 2 x 20mm
Floor driveshaft Ø (mm) 80
Power requirement (hp) 200
PTO Speed (rpm) 1000
Tare weight (kg) 6,225
Overall length (mm) 8,895
Overall height ((mm) 3,710
Overall width (mm) 2,990
Interior length (mm) 5,670
Interior width at bottom (mm) 1,550
Interior width at top - loading width (mm) 2,125
Interior height (mm) 1,480
Loading height (mm) 2,750
Level fill cu.m 13.7 cu.m
Heaped fill cu.m 17.3 cu.m
Axle carrying capacity (kg) 16,200
Axle beam (mm) 150x150x16
Brake size (Ø x W, mm) 420x220
Standard tyre size 580/70R38
Rotor Ø (mm) 614
Disc Ø (mm) 1100
Floor chains (qty x Ø, mm) 2 x 20mm
Floor driveshaft Ø (mm) 80
Power requirement (hp) 220
PTO Speed (rpm) 1000
Tare weight (kg) 6,325
Overall length (mm) 6,895
Overall height ((mm) 3,710
Overall width (mm) 2,990
Interior length (mm) 4,700
Interior width at bottom (mm) 1,550
Interior width at top - loading width (mm) 2,125
Interior height (mm) 1,230
Loading height (mm) 2,500
Level fill cu.m 9.6 cu.m
Heaped fill cu.m 12.6 cu.m
Axle carrying capacity (kg) 14,000
Axle beam (mm) 150x150x15
Brake size (Ø x W, mm) 420x180
Standard tyre size 580/70R38
Rotor Ø (mm) 614
Disc Ø (mm) 1100
Floor chains (qty x Ø, mm) 2 x 16mm
Floor driveshaft Ø (mm) 65
Power requirement (hp) 150
PTO Speed (rpm) 1000
Tare weight (kg) 6,130
Overall length (mm) 7,895
Overall height ((mm) 3,710
Overall width (mm) 2,990
Interior length (mm) 5,670
Interior width at bottom (mm) 1,550
Interior width at top - loading width (mm) 2,125
Interior height (mm) 1,230
Loading height (mm) 2,500
Level fill cu.m 11.6 cu.m
Heaped fill cu.m 15.2 cu.m
Axle carrying capacity (kg) 16,200
Axle beam (mm) 150x150x16
Brake size (Ø x W, mm) 420x220
Standard tyre size 580/70R38
Rotor Ø (mm) 614
Disc Ø (mm) 110
Floor chains (qty x Ø, mm) 2 x 20mm
Floor driveshaft Ø (mm) 80
Power requirement (hp) 200
PTO Speed (rpm) 1000
Tare weight (kg) 6,225
Overall length (mm) 8,895
Overall height ((mm) 3,710
Overall width (mm) 2,990
Interior length (mm) 5,670
Interior width at bottom (mm) 1,550
Interior width at top - loading width (mm) 2,125
Interior height (mm) 1,480
Loading height (mm) 2,750
Level fill cu.m 13.7 cu.m
Heaped fill cu.m 17.3 cu.m
Axle carrying capacity (kg) 16,200
Axle beam (mm) 150x150x16
Brake size (Ø x W, mm) 420x220
Standard tyre size 580/70R38
Rotor Ø (mm) 614
Disc Ø (mm) 1100
Floor chains (qty x Ø, mm) 2 x 20mm
Floor driveshaft Ø (mm) 80
Power requirement (hp) 220
PTO Speed (rpm) 1000
Tare weight (kg) 6,325
